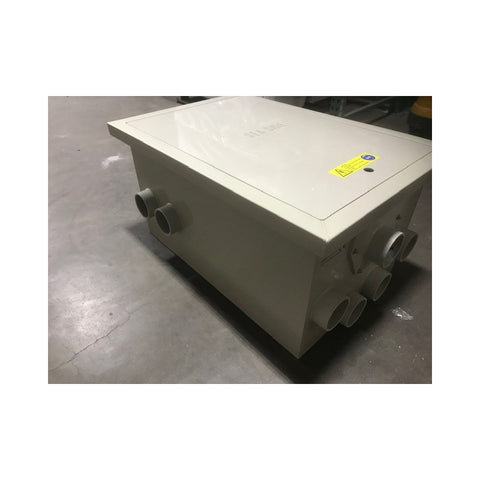

SeaSide PP-40 RDF W/ 4 Inlets ( NEW )

Unit comes with 1 x Periha Drop in UV 18w, external cleaning up ( required installation )

Specifications PP-40  ( New Design With  4 INLETS AND OUTLETS PICTURE SHOWED 3 )

MAX Flow 10500GPH
Pond suggested up to 18000GAL
Standard flow is 40 m3 / h
Gravity / Airlift / Pump fed
Installation height 17 cm

Material:

PP 15 mm housing / PP 20 mm drum
Stainless steel 316/304 / Silicone seal

Specifications:

4 x 110 mm inputs
2 x 110 mm outputs ( 4 extra 110 mm outputs  on the side for pump fed )
110 mm waste water drain
Diameter drum 40 x 50 cm
Screen panel 120 micron stainless steel 316
Removable waste water container
Spray bar with removable mounting, high pressure PVC 40 bar Cover
Control box on filter
Turn / flush manual operation
Rinse level adjustable
Turn / rinse time adjustable

All components assembled in modules and therefore quickly interchangeable
