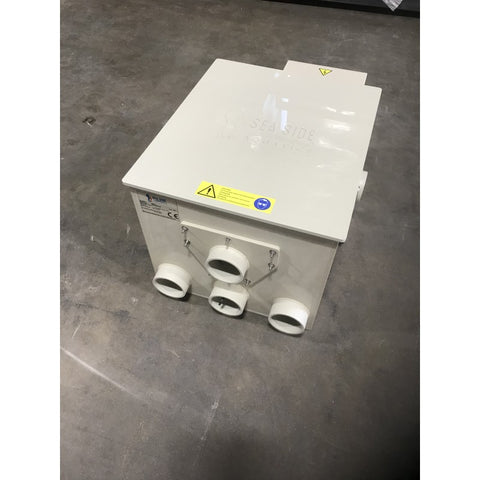

SeaSide Eco 22 RDF

Unit comes with 1 x Periha Drop in UV 18w, external cleaning up ( required installation )

Specifications Eco-22

MAX Flow 5800GPH
Pond Size Suggested 11500GAL
Standard flow is 22 m3 / h
Gravity / Airlift / Pump fed
Installation height 17 cm

Material:

PP 10 mm housing / PP 15 mm drum
Stainless steel 316/304 / Silicone seal

Specifications:

2 x 110 mm inputs
2 x 110 mm outputs ( 2 extra 110 mm outputs for pump fed )
110 mm waste water drain
Diameter drum 40 x 40 cm
Screen panel 75 micron stainless steel 316
Removable waste water container
Spray bar with removable mounting, high pressure PVC 40 bar Cover
Control box on filter
Turn / flush manual operation
Rinse level adjustable
Turn / rinse time adjustable

All components assembled in modules and therefore quickly interchangeable
